Unitank / Beer Fermentation Tank / Uni-tank

YoLong 10bbl Uni-Tanks

A unitank allows the brewer to carb beer quickly (under 24-hours) by using a carb stone. During this process, it is possible to monitor the head pressure to a very precise degree. The Unitank provides some features associated with a Brite Beer Tank and some from a primary fermenter/fermentation tank.

What is a Unitank /Beer Fermentation Tank / Uni-tank?

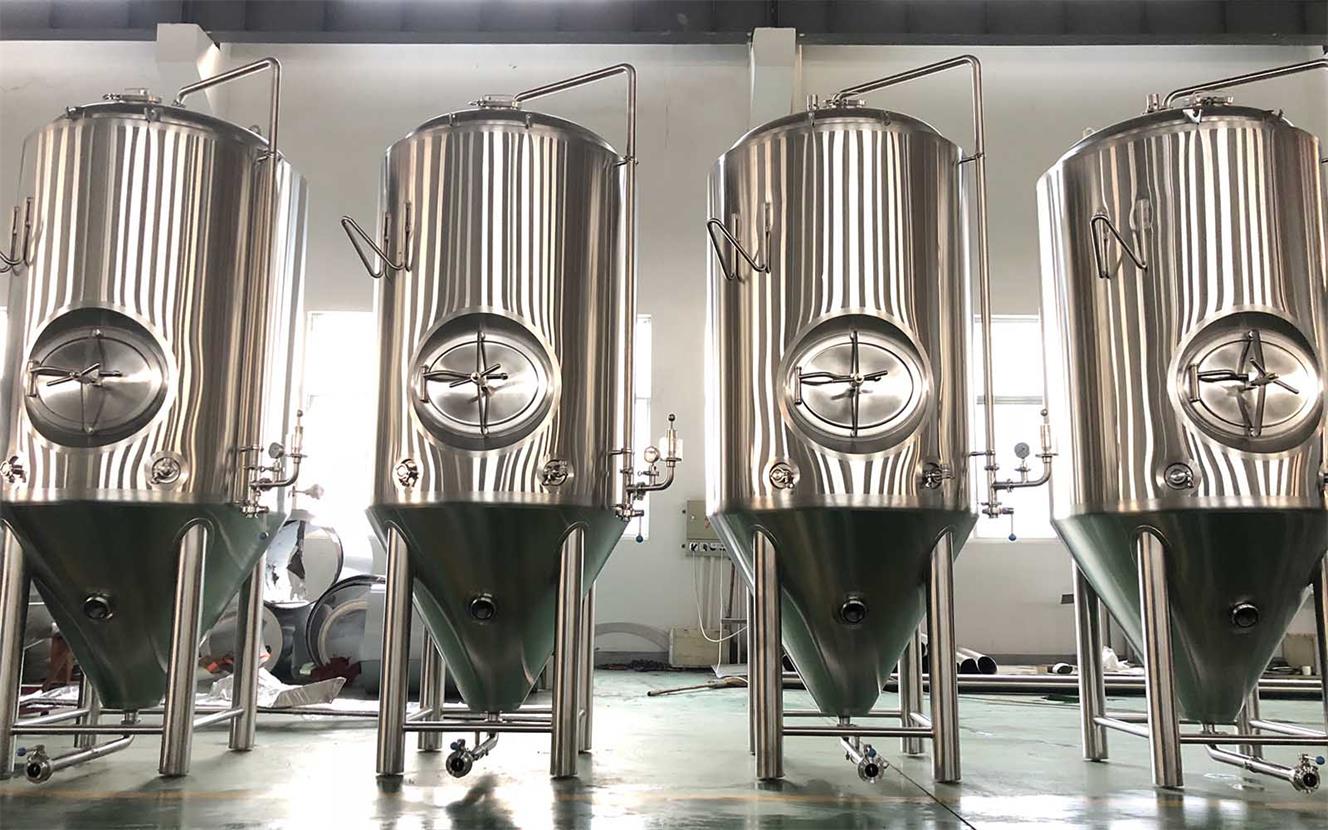

YoLong Unitank

Unitank, uni-tank, or beer fermentation tank: a dual-purpose combination tank used as both fermentation tank and brite beer tank, which can carbonate beer with CO2 while in the unitank fermenter.

YoLong uni-tank is comprised of cooling jackets, insulation, and cone bottom. All welding is done under protection-gas atmosphere; inside and outside ground, cooling jackets seamlessly welded.

YoLong fabricates to PED and AS1210 certification and specifications. YoLong uni-tank fermenters meet government stipulations and requirements as per different countries.


Specification

YoLong 5bbl Unitanks

  • Capacity available from 1/2 bbl to 20bbl
  • SS 304 construction
  • Top dished head with pressure vacuum relief valve
  • Top manway or side shadowless manhole
  • Dry Hopping port with cap
  • Sanitary rotary spray ball
  • PU foam insulated
  • Carbonating stone for CO2
  • Cooling jacket on cylinder and cone bottom
  • Side CIP arm assembly with bung valve and pressure gauge
  • Sanitary thermowell
  • Sample valves
  • Cone racking arm
  • 60 degree to 90 degree cone bottom
  • Bottom discharge
  • Four legs adjustable feet, optional for anti-seismic
  • Internal shell finish: 2B, External Shell #4
  • Available pressure certificates of PED for 2014/68/EU, AS1210 etc
