24HL 5 Vessels Steam Heating Full-auto Brewing System

LARGE MICRO BREWERIES

COMPLETE BREWING EQUIPMENT OF LARGE SCALE, MULTI-VESSEL, 5-30BBL BREWERY PRODUCTION
MICRO-BREWERIES

The 24HL 5 Vessels Steam heating large scale beer brewing equipment is cost-effective turnkey commercial brewing equipment.

YoLong with global leading design solutions and innovations of brewery / beverage equipment. Customized Micro to commercial size brewery system configurations from 5HL / BBL to 30HL / BBL.

  • We can accept the customized brewing system from consult to design to manufacture.
    We serve every client with design and quality far superior to peers on brewery equipment.
    Free consultant and design. Top Quality Micro Brewery Equipment Manufacturer!
    Turnkey Project for Brewpub & Microbrewery. Awesome Service, Factory price.

The standard brewery configuration and optional equipment options provide customers with a very large budget space for development.

STANDARD PRODUCT FEATURES:

  • 1 x Brew kettle with multi steam jacket
  • 1 x whirlpool vessel with multi steam jackets
  • 1 x Mash / Lauter vessel with top glass man way and side grain out doors
  • 1 x SS lauter rakes and grain out with variable speed control
  • 1 x TRIPLE brew length 304 SS HLT with steam plate heat exchanger
  • 1 x TRIPLE brew length cold liquor tank with dual glycol jackets

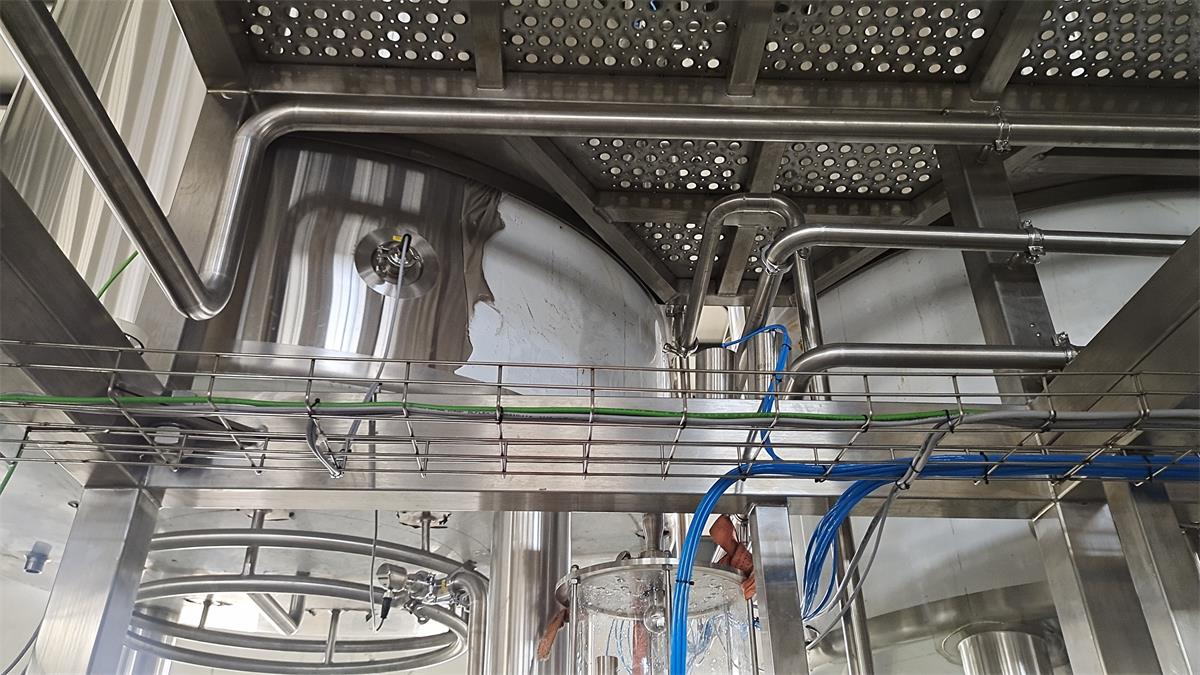

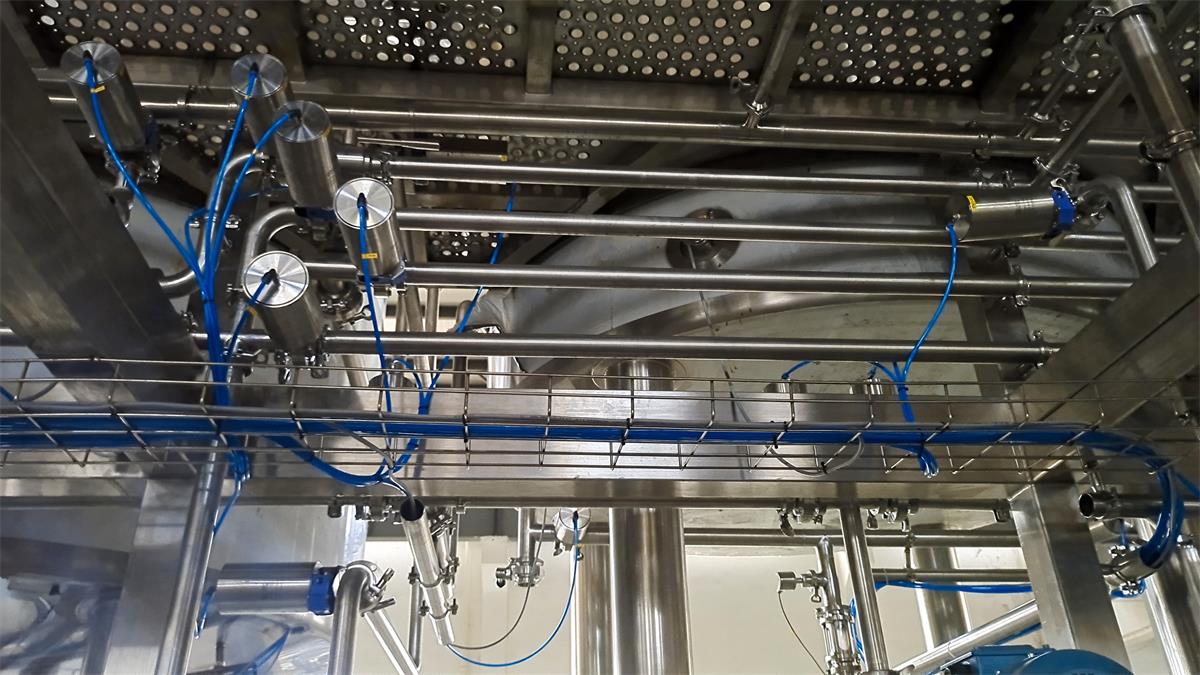

  • 1 x SS work platform with sanitary process piping & sanitary valves
  • 1 x Add Sink on working platform
  • 3 x Sanitary wort pumps with variable speed control
  • 1 x SS HLT pump with variable speed control
  • 1 x SS CLT pump with variable speed control
  • 1 x SS wort grant
  • 1 x Sanitary heat exchanger and wort aeration system
  • 1 x Water flow meter after water mixing station for cold and hot water
  • 2 x Siemens touch screen control panels
  • 3 x Tank light assemblies
  • 1 x Mash hydration assembly
  • 1 x Cellar package with brewers hoses, valves and fittings
  • 1 x grain auger
  • 1 x two roll malt mill – 1000KG/hr
  • 5 x Fermenters/uni-tanks – FOUR TIMES brew length
  • 2 x Brite beer tank – FOUR TIMES brew length
  • 6 x stacked serving tank
  • 1 x Glycol chiller – outdoor unit
  • 1 x Cellar control panel with RTD & solenoid valves
  • 1 x Portable sanitary CIP/wort pump, SS cart & VFD controller
  • 1 x 50KG Hop rocket

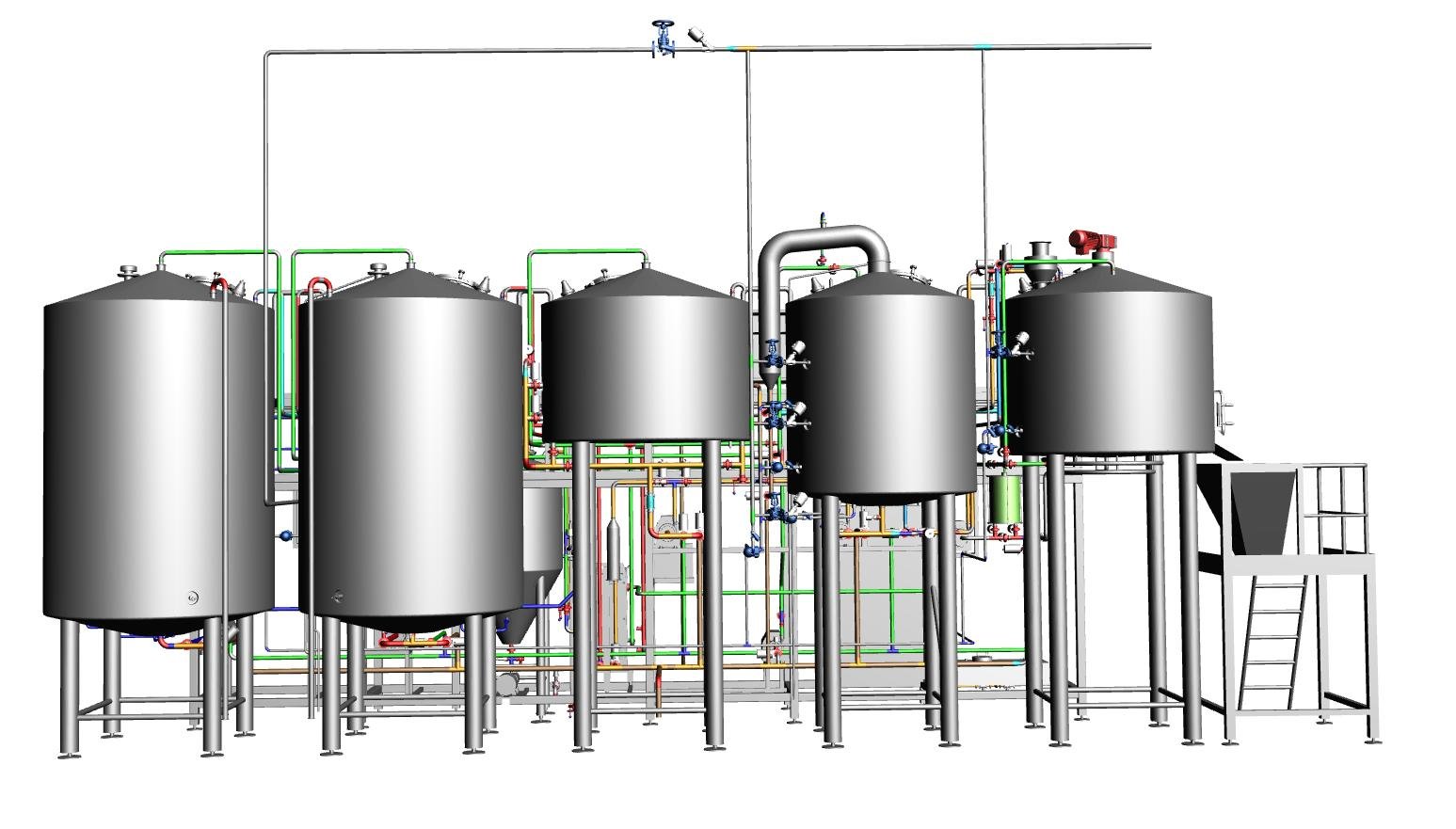

  • 1 x CAD layouts, installation assistance, assembly, training

OPTIONS:

  • Grain lift auger
  • Grain mill working platform
  • Brite tank beer volume detect and display
  • Remote control for brewhouse/cellar tank
