10HL 3 Vessels Steam Heating Brewing System

LARGE MICRO BREWERIES

COMPLETE BREWING EQUIPMENT OF LARGE SCALE, MULTI-VESSEL, 5-30BBL BREWERY PRODUCTION
MICRO-BREWERIES

The 10HL 3 vessels Steam heating beer brewing equipment provides a complete brewing system solution for the expansion of the brewery.

The advantage of this kind of brewery is that the brewing is flexible and the specially designed and customized brewery system can meet the different needs of brewmaster for brewing batches. It is initially equipped with 6*20HL fermentation tanks. And enough fermentation control points are reserved in the control system for the expansion in the second year.

  • We are the global Leader In the manufacturing Of brewery equipment. On-Time Delivery.
    Cost-effective brewery equipment, Beautiful appearance, High Quality. Highly Automatic.
    Site-Size & Budget-Friendly Custom Designed Equipment, Customize Brewery. Free consultant and design.

The standard brewery configuration and optional equipment options provide customers with a very large budget space for development.

STANDARD PRODUCT FEATURES:

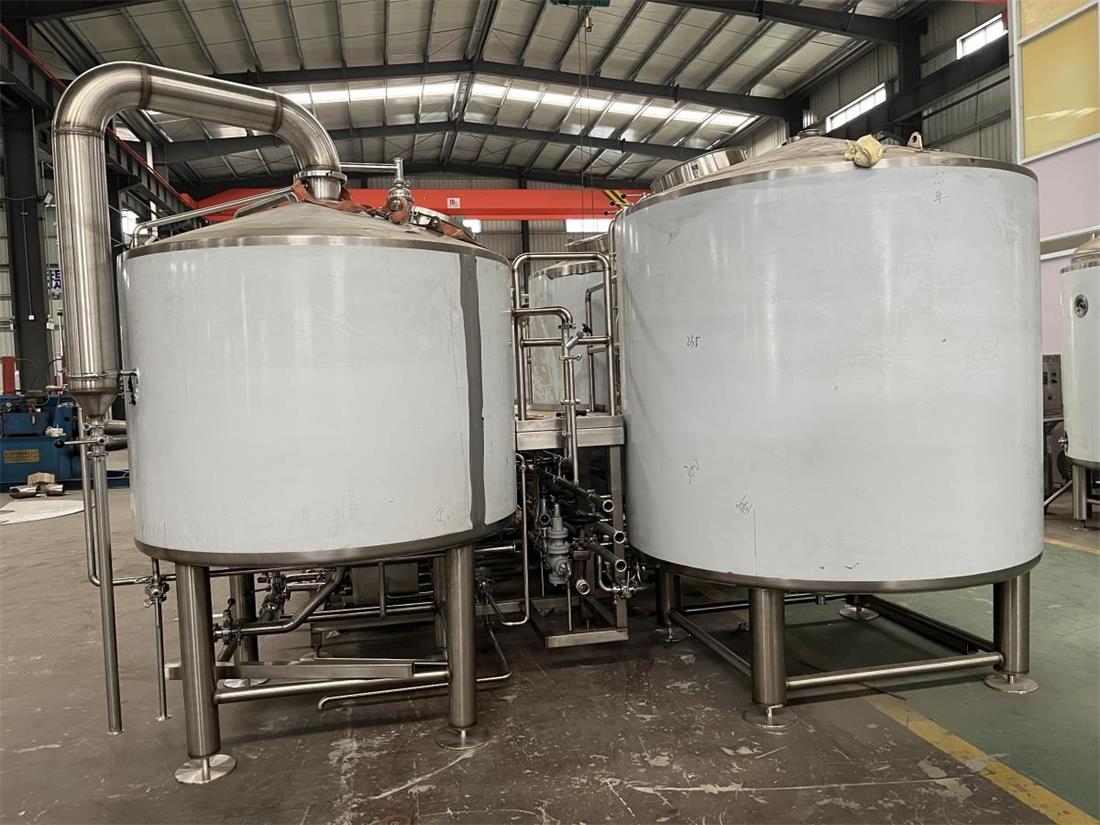

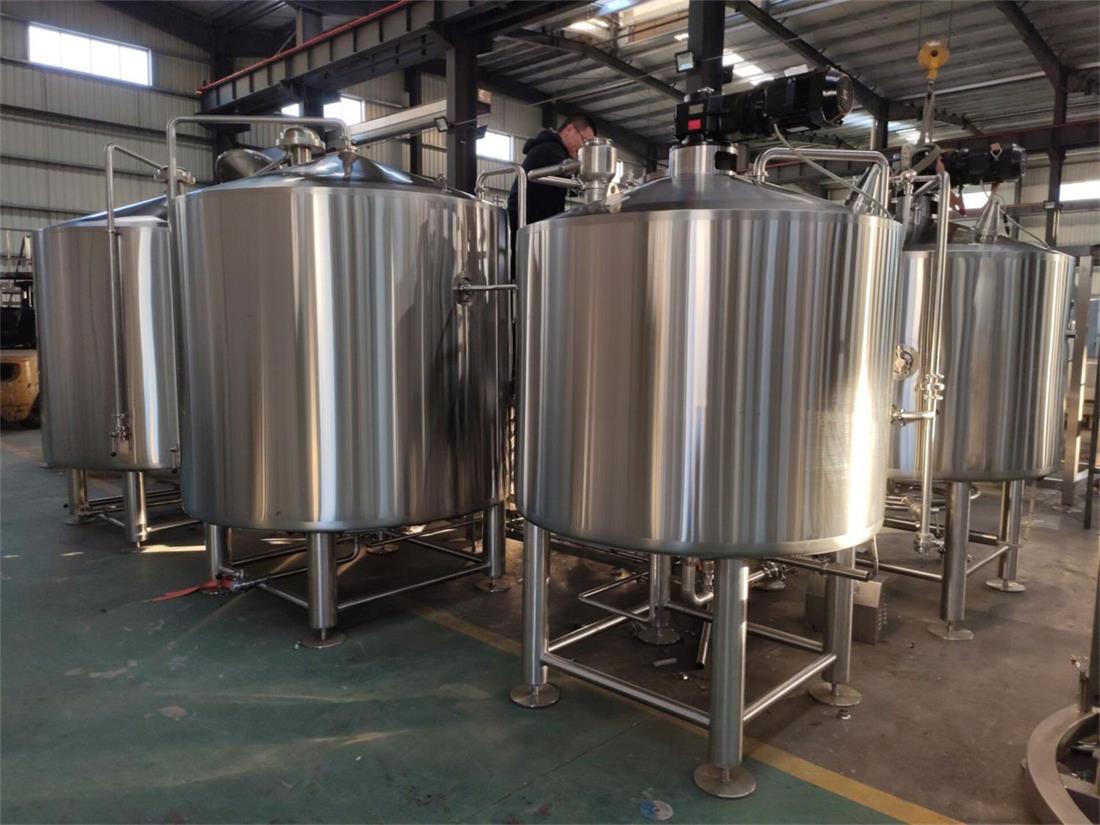

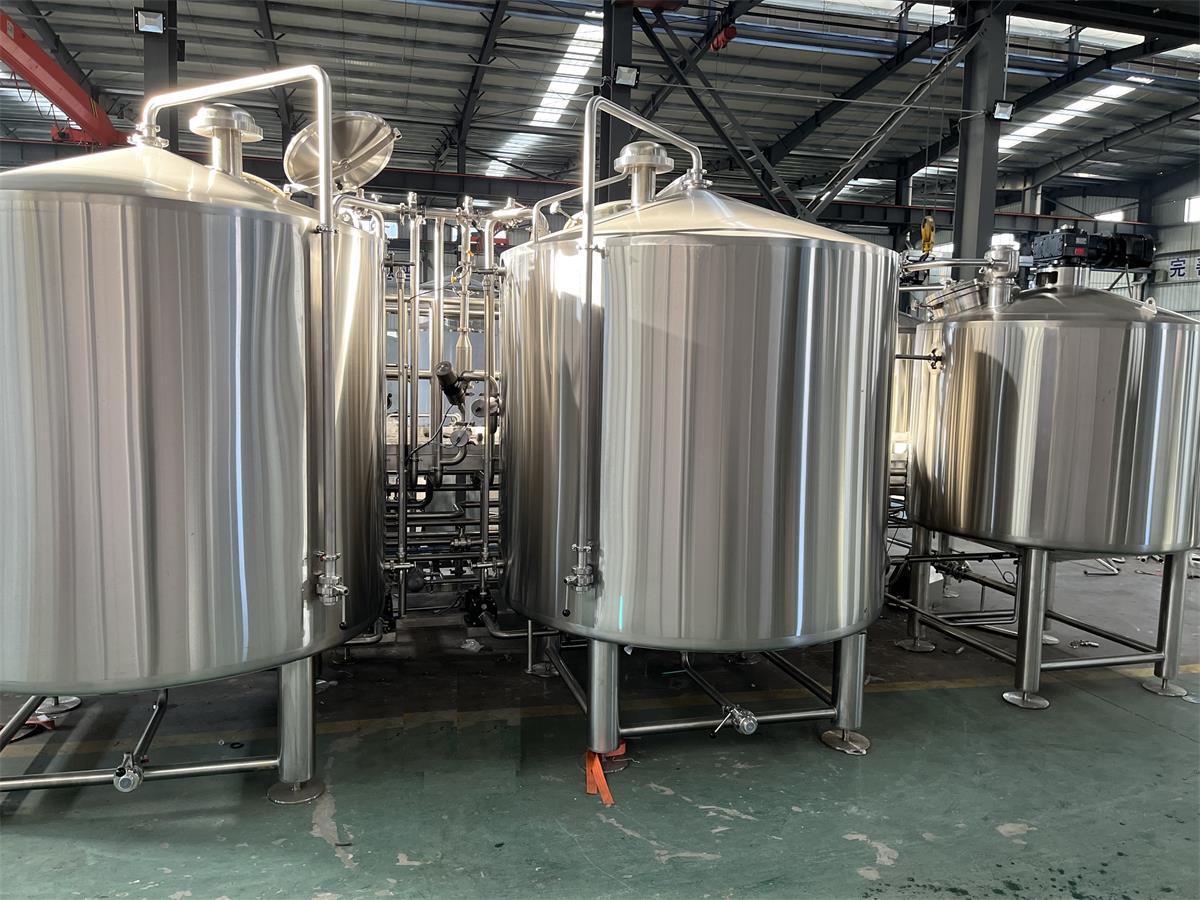

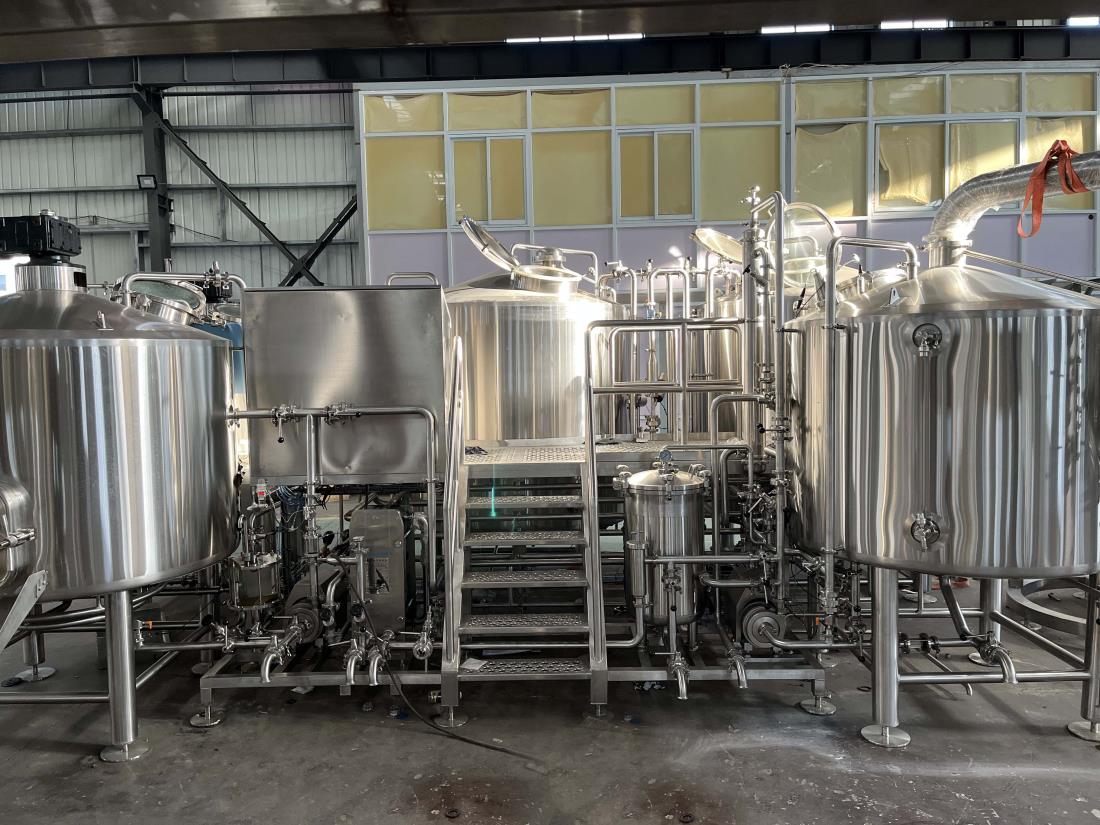

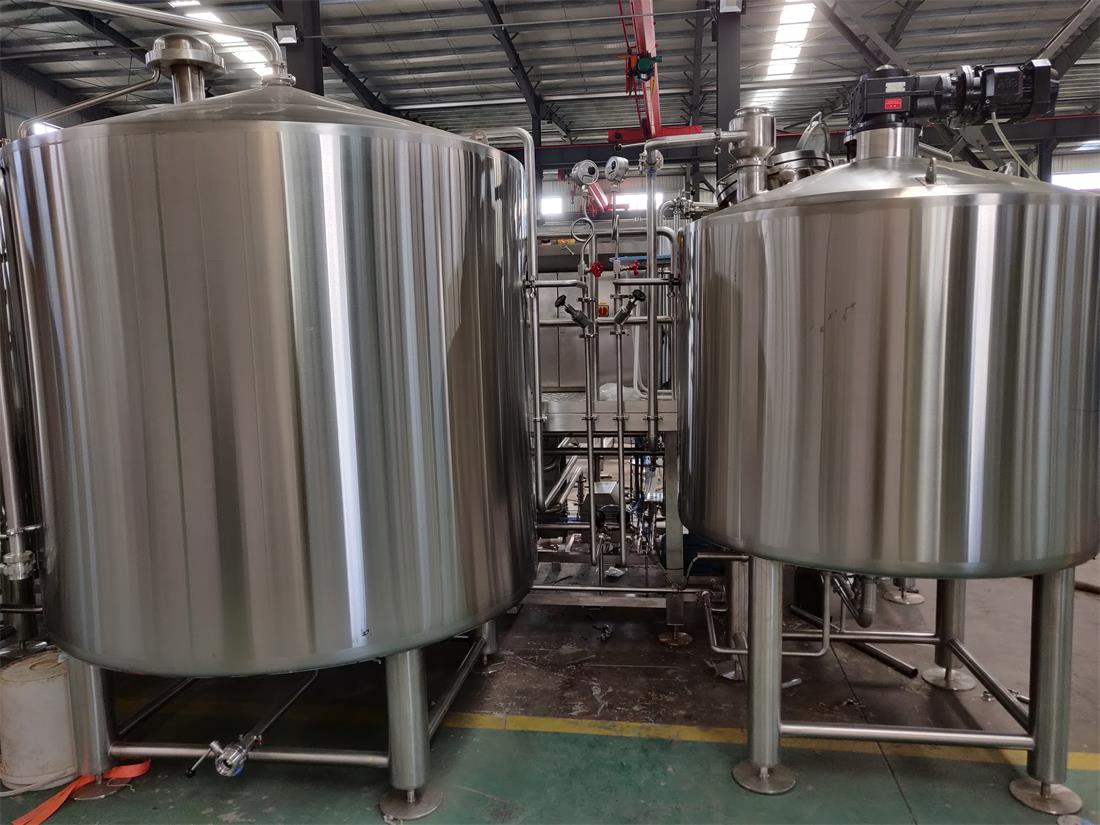

  • Three Vessels Combo Brewhouse of MT,LT& KT/WP
  • Steam Heating With Relative Steam Pipelines & fittings
  • 1 x PLC + HMI Semi-Automation Control System For Brewhouse
  • 3 x Wort VFD Pumps Included For Per MT,LT &KT/WP
  • 1 x TRIPLE Brew Length 304 SS HLT With Steam Jackets
  • 1 x TRIPLE Brew Length 304 SS Cold Liquor Tank With Dual Glycol Jackets
  • 1 x 5vessels SS Work Platform With Sanitary Process Piping & sanitary Valves
  • 3 x Sanitary Wort Pumps With Variable Speed Control

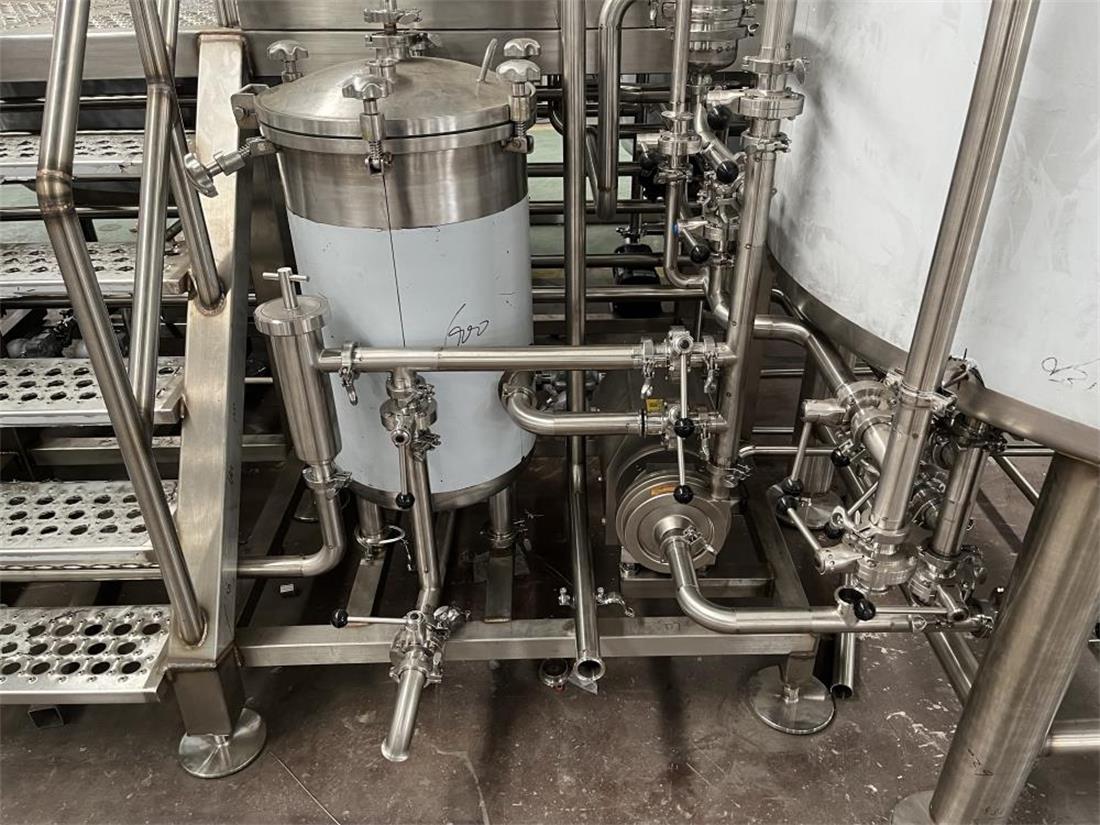

  • 1 x SS Wort Grant
  • 1 x Tube Heat Exchanger For Quick Wort Cool Down Before Whirlpool or Sour Bee

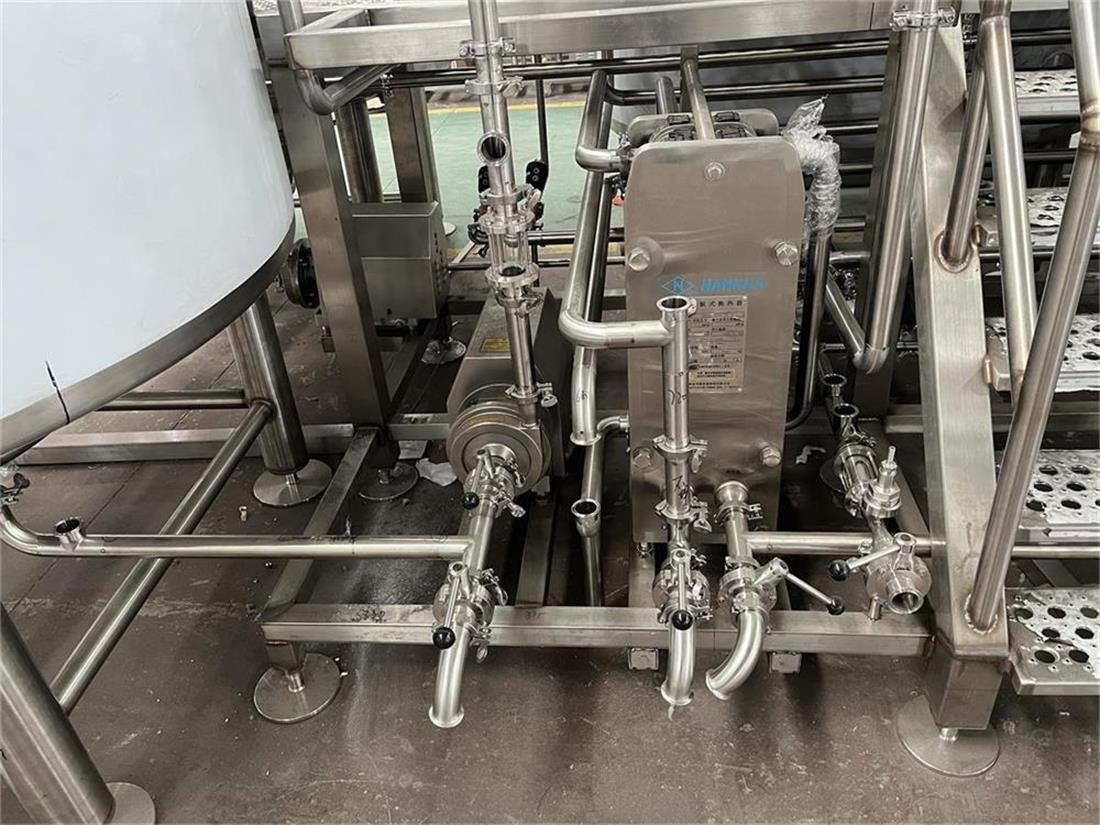

  • 1 x Two-stage Sanitary Heat Exchanger And Wort Aeration System
  • 1 x Water Flow Meter After Water Mixing Station For Cold And Hot Water
  • 5 x Tank Light Assemblies
  • 1 x Mash Hydration Assembly
  • 1 x Cellar Package With Brewers Hoses, Valves and Fittings

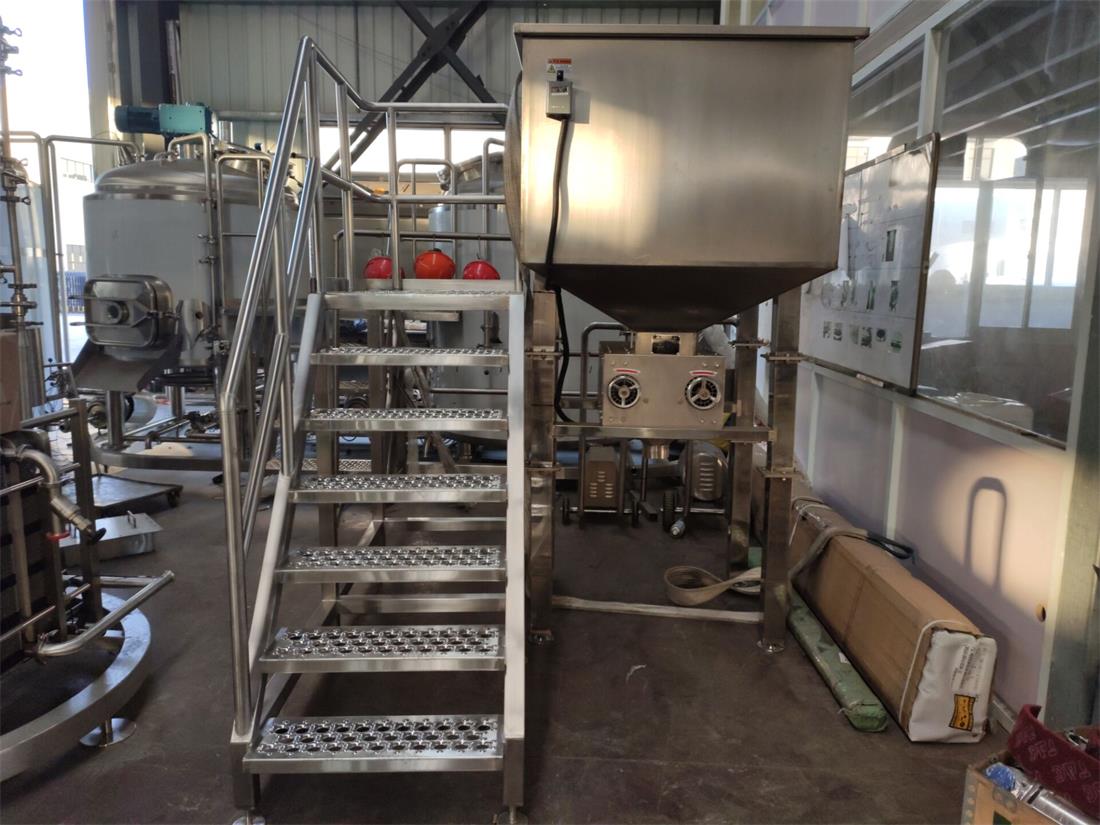

  • 1 x Upgrade Two Roll Malt Mill With Working Platform – 1000KG/hr
  • 1 x Grain Flexible Auger
  • 6 x Fermenters/uni-tanks – TWO TIMES Brew Length
  • 1 x Glycol Chiller
  • 1 x 3 vessels Portable Skid CIP, 304 SS & VFD Controller
  • 1 x Portable 500ml Wort Sample Cooling Dvice

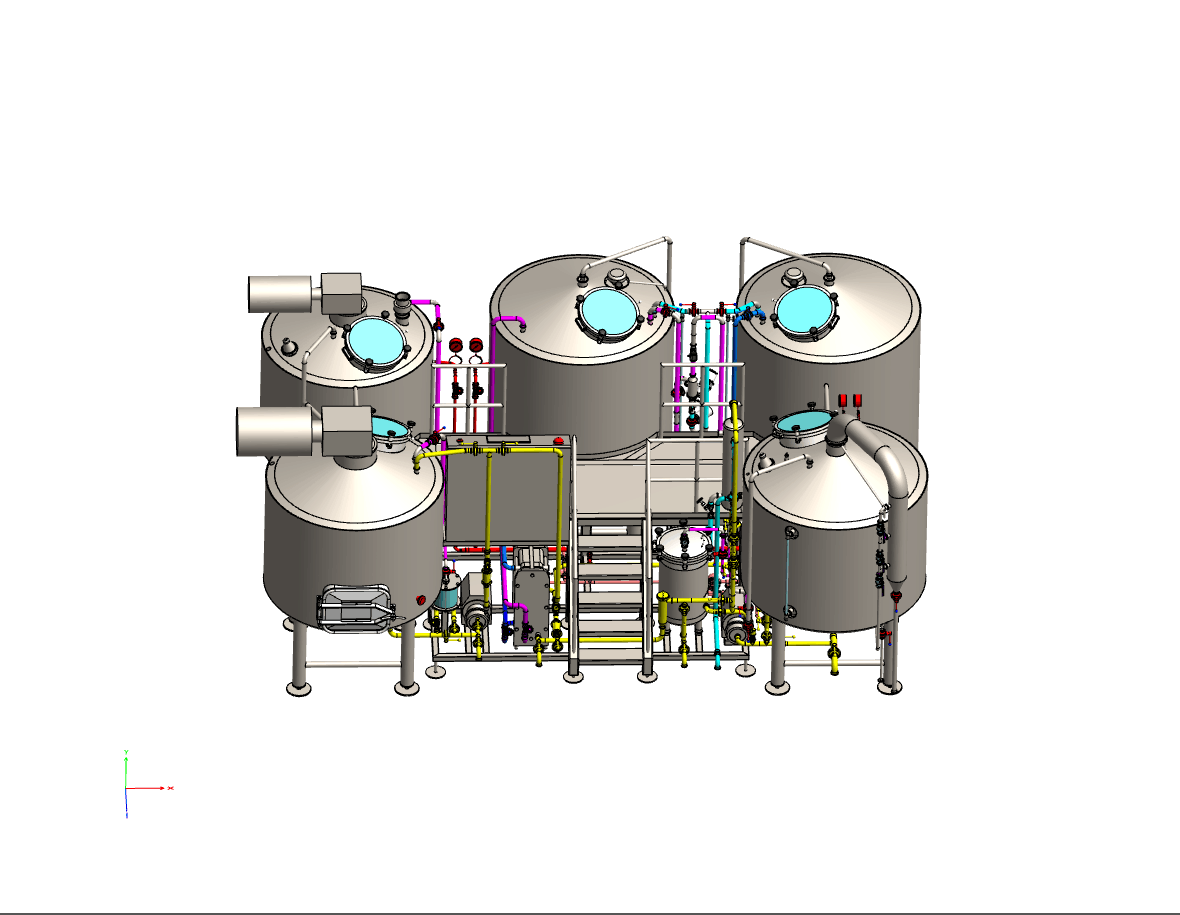

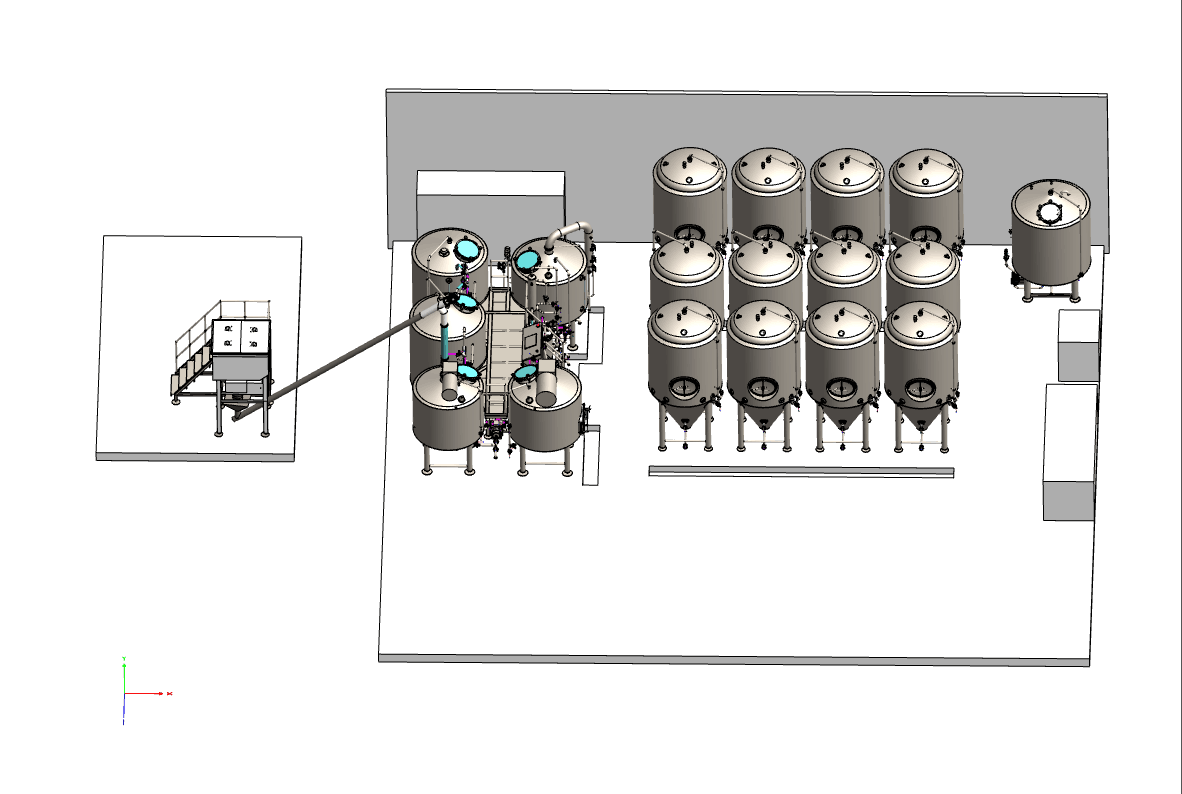

  • 1 x CAD Layouts, Installation Assistance, Assembly, Training

OPTIONS:

  • Fully Automated Functionality Optional
  • CIP Automatic Upgrade
  • Remote Control For Brewhouse/cellar tanks
  • Main Steam Pipeline Safety/pressure Regulating Valve Assembly
  • Manual / automatic Keg Cleaning Machine
  • 1 x Portable Flowmeter
  • 1 x Portable Pump
  • 1 x Hopping Storm
  • 1 x Yeast Brink
  • 1 x Hop Back
  • AS/PED Certification For Cellar Tanks
