10HL 2 Vessels Steam Heating Brewery System

LARGE MICRO BREWERIES

COMPLETE BREWING EQUIPMENT OF LARGE SCALE, MULTI-VESSEL, 5-30BBL BREWERY PRODUCTION
MICRO-BREWERIES

The 10HL 2 vessels Steam heating Copper craft beer brewing equipment provides different designs and functions for small scale craft breweries…

YoLong with global leading design solutions and innovations of brewery / beverage equipment. Customized Micro to commercial size brewery system configurations from 5HL / BBL to 30HL / BBL.

  • We can accept the customized brewing system from consult to design to manufacture.
    We serve every client with design and quality far superior to peers on brewery equipment.
    Free consultant and design. Top Quality Micro Brewery Equipment Manufacturer!
    Turnkey Project for Brewpub & Microbrewery. Awesome Service, Factory price!

The standard brewery configuration and optional equipment options provide customers with a very large budget space for development.

STANDARD PRODUCT FEATURES:

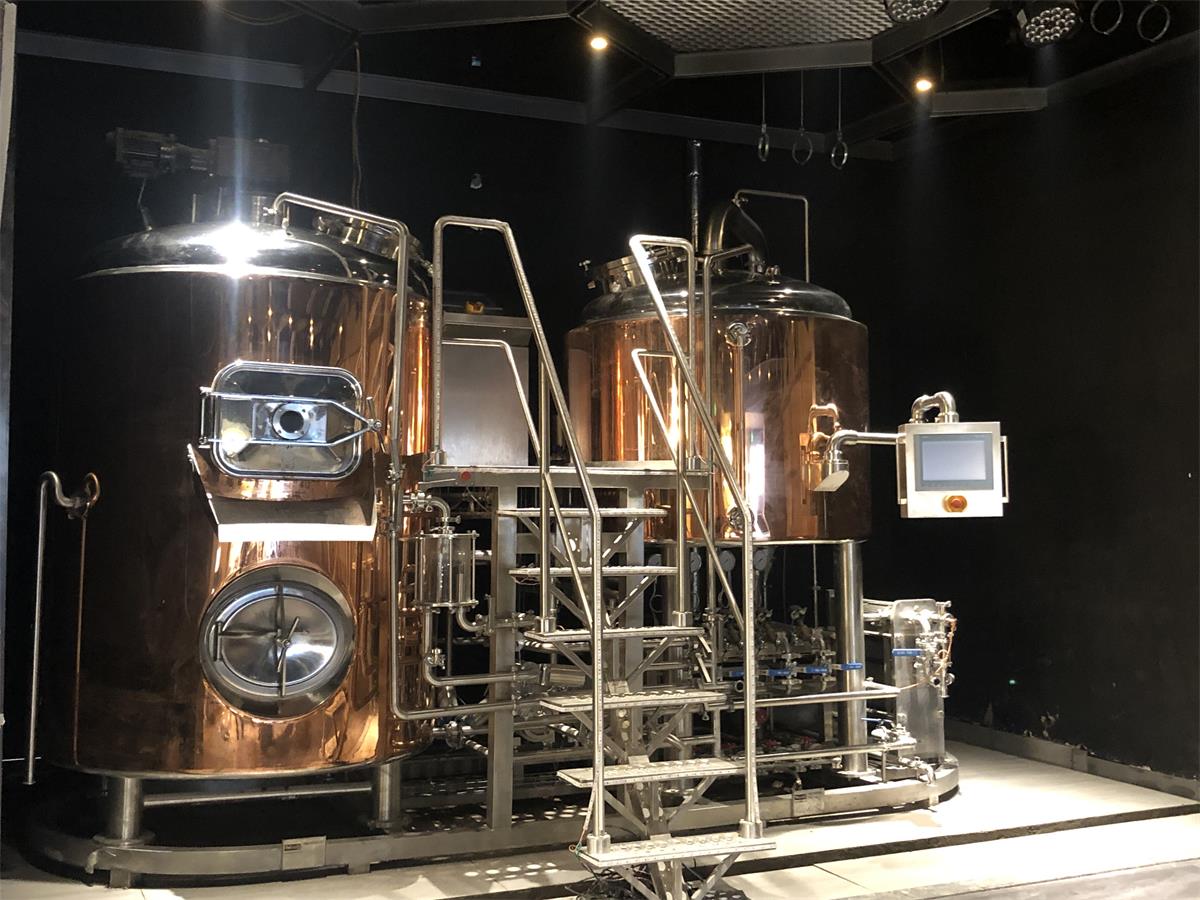

  • Two vessels combo skid & Stacked brewhouse of MMLT / HLT & KWPT with copper finish
  • Stacked Brewhouse for space saving, the left tank was stacked MMLT + HLT<1.5 size>
  • The right tank was KWPT
  • Steam heating with relative steam pipelines & fittings
  • No.1 PLC + HMI Automation Control system for Brewhouse
  • No.2 PLC + HMI Automation Control system for Fermentation
  • Automated material flow by all pneumatic valves
  • Two Wort VFD pumps included for per MMLT & KWPT
  • Rake Knife with VFD Regulation
  • Dual stage PHE for wort cooling, Tap Water & Glycol for energy saving
  • Wort Grant & Hop Back & Steam Condenser & Sight Glasses & Sampling Valves
  • Flowmeter, Temp Sensor, Level Sensor etc for system automation control
  • Double Glycol Reservoir
  • Suitable chiller for fermentation temp control & wort cool down
  • Hot Water Pump & Glycol Supply Pump

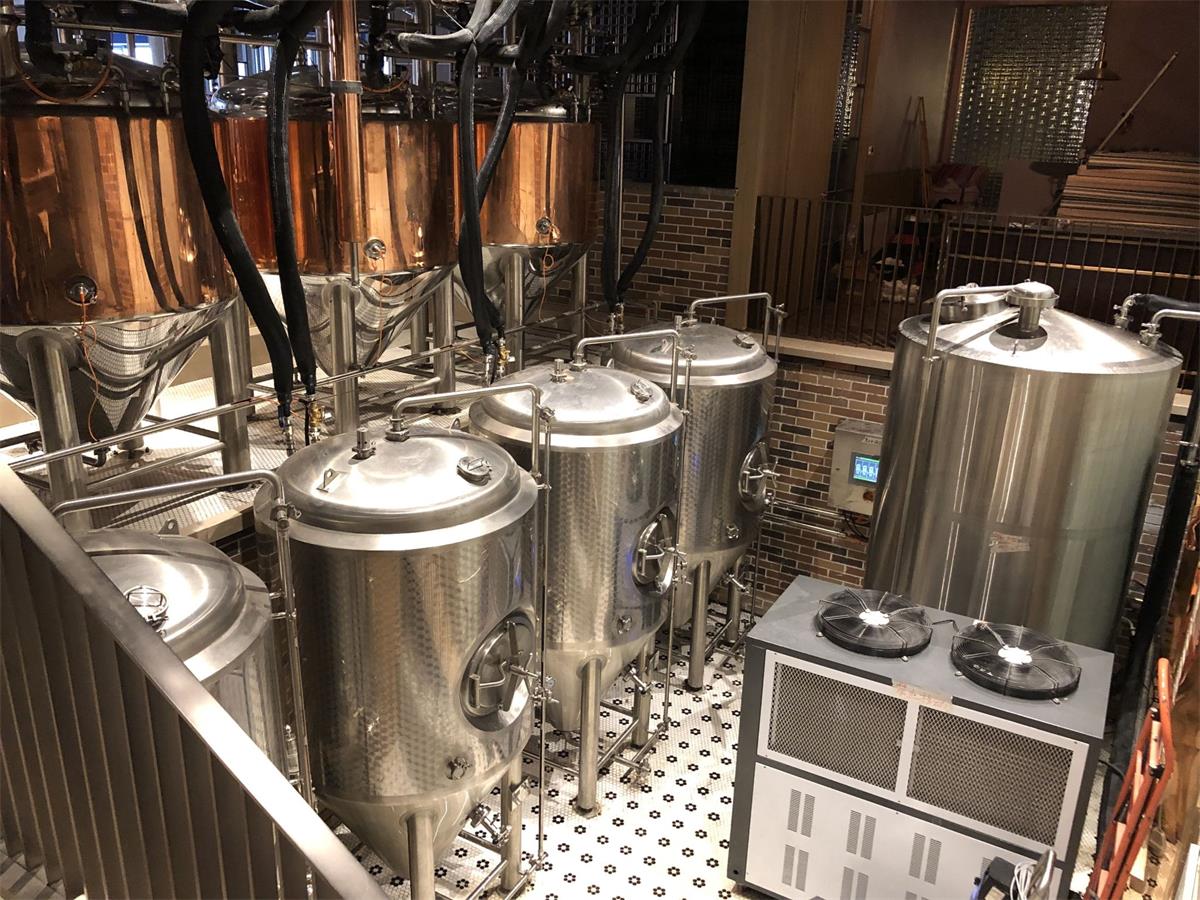

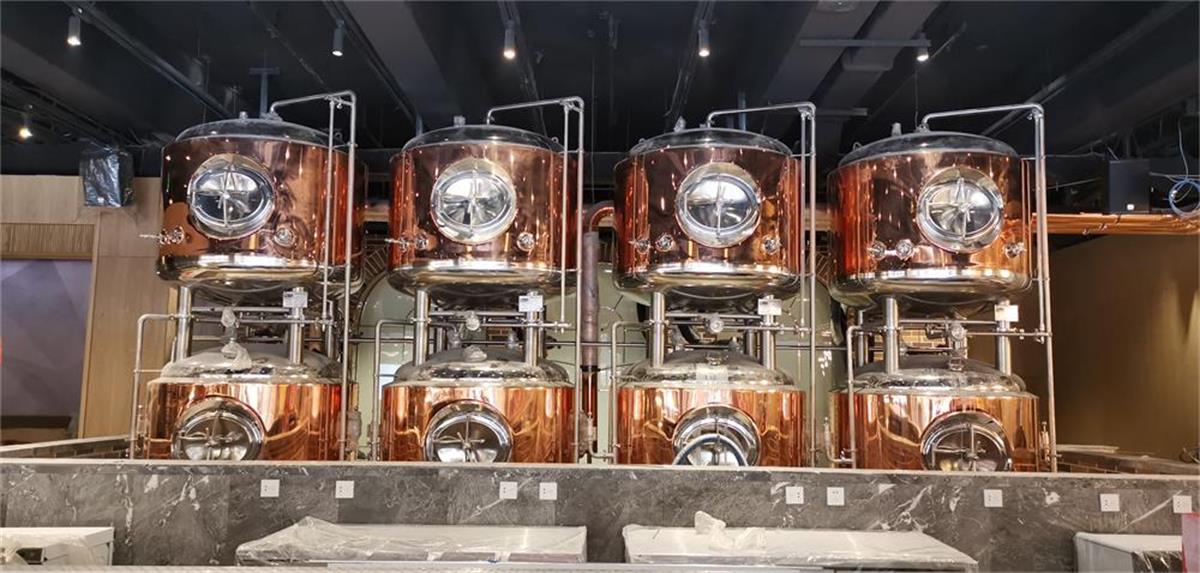

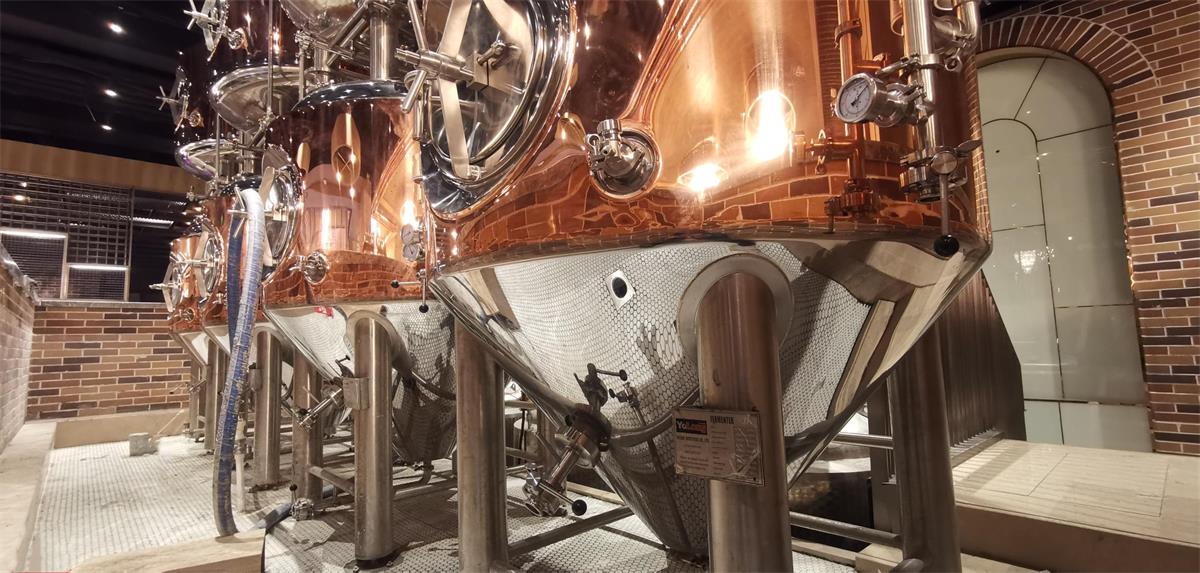

  • Usual Fermenter & Stacked FV & BBT

OPTIONS:

  • Elec & Direct Fire heating optional for the budget saving
  • Manual control cabinet for the budget saving
  • Remote Access functionality
  • Usual Stainless steel finish for the budget saving
