2hl Pilot brewery system

Additional FAQs about a 2hl Pilot Brewery System

• Q: What batch size and outputs can I expect from a 2hl pilot brewery system?

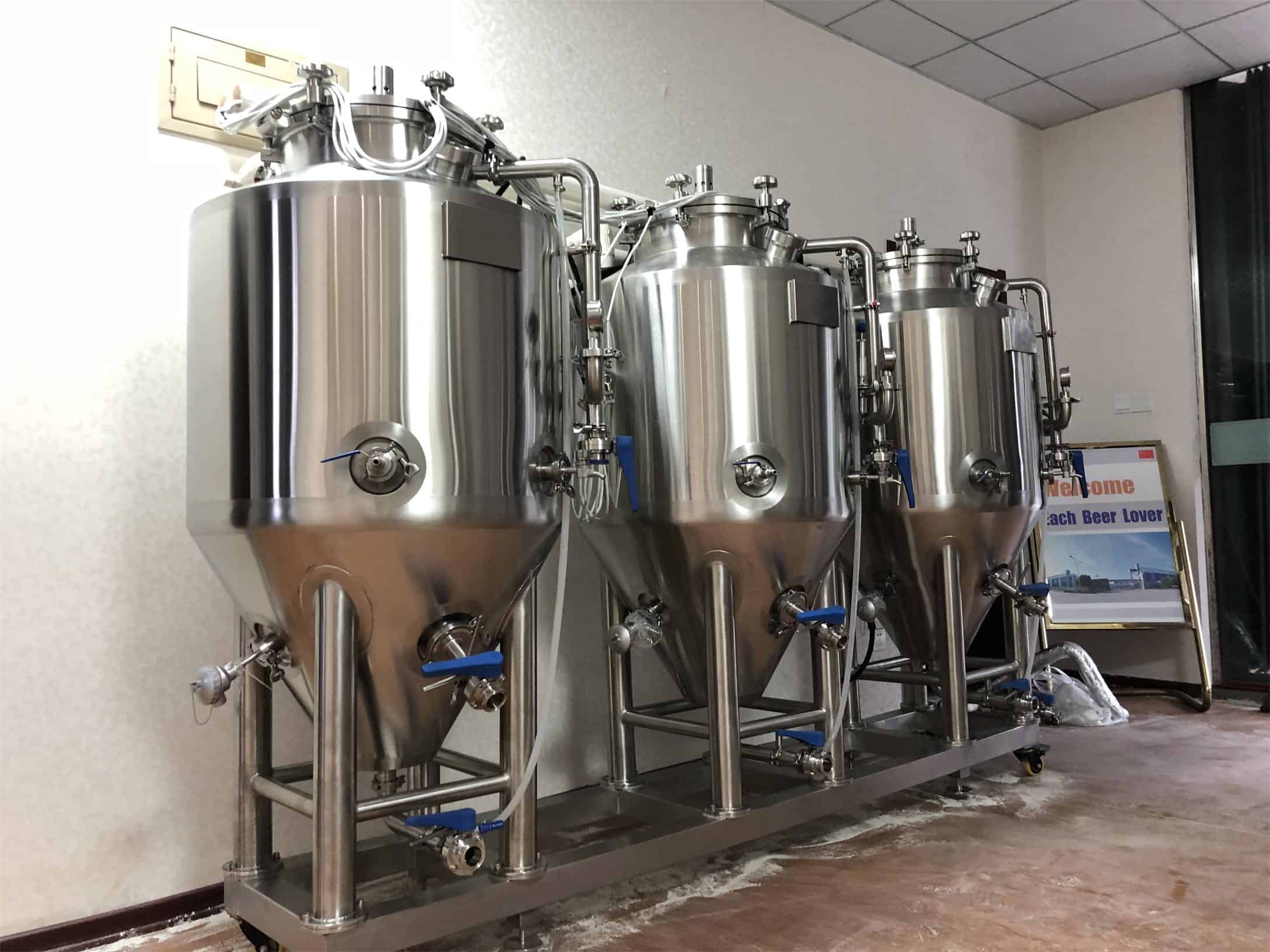

  A: A 2 hL brewhouse typically yields 160–190 L packaged beer per batch after losses. Double-batching can fill 4 hL fermenters in one day.
• Q: How closely can a 2hl pilot system mimic a production brewhouse?
  A: With similar mash/lauter geometry, whirlpool hydraulics, and controlled boil-off (8–12%/h), a 2 hL pilot reliably predicts extract, color, IBU, and hop aroma scalings for 10–40 hL systems.
• Q: What utilities are required for rapid, 5-hour installation?
  A: Pre-plumbed skid pilots usually need: steam (or electric) supply, 3-phase power per OEM spec, potable water (and hot water if available), glycol supply/return, floor drain, and CO2 line to cellar.
• Q: What control level is recommended at 2hl scale?
  A: Semi-automatic with PID temperature control, flow meters, mash rakes/variable-speed pump, and basic PLC for step mashes and whirlpool timing offers the best repeatability-to-cost ratio.
• Q: How do I clean and validate CIP on a 2hl pilot?
  A: Run a 50 L CIP skid with 1.5–2.0% caustic at 60–70°C, followed by acid passivation as needed and sanitizer. Validate with flow (≥1.5 m/s), temperature, conductivity/time logs, and periodic ATP/protein swabs.

2025 Industry Trends for 2hl Pilot Brewery Systems

• Faster commissioning: factory-wired, pressure-tested skids enable same-day hot water tests and first wort within 24 hours.
• Sustainability: insulated vessels, VFD pumps, and heat recovery from wort HX reduce water-to-beer and kWh/batch by 10–25%.
• Data capture: low-cost PLC/IoT retrofits log temps, flow, gravity, and CIP cycles to align pilot data with production QA.
• Oxygen control: closed transfers, CO2‑purged dry hop tees, and inline DO checks target package DO <50–100 ppb.
• Flexible heating: steam micro-generators or electric elements sized to power limits; electric popularity grows where gas permitting is tight.

2025 Benchmarks for a 2hl Pilot Brewery System

Metric	Typical Range	Notes
Brewhouse efficiency	72–82%	Depends on crush, lauter setup, and mash schedule
Boil-off rate	8–12%/h	Verify vs. utility capacity and venting
Water-to-beer ratio	3.5–5.0:1	With HX recovery and optimized CIP
Energy use per batch	12–25 kWh (electric) or 0.8–1.5 m³ NG eq.	Heating method and groundwater temp impact
Mash temp stability	±0.3–0.7°C	With calibrated probes and insulation
DO targets (post-CF/pre-fermenter)	<0.1–0.5 ppm	Closed knockout preferred
Install/commission time	4–8 hours (mechanical) + 0.5 day (IO/steam)	Skid pre-fit piping and FAT-tested controls

Sources: Brewers Association sustainability tools, MBAA Technical Quarterly, OEM spec sheets (2024–2025). Always confirm with local utilities and codes.

Latest Research Cases

Case Study 1: One-Day Commissioning of a 2hl Pilot Skid (2025)

• Background: A brewpub needed a validated pilot line for seasonal R&D in a tight urban space with limited downtime.
• Solution: Pre-FAT at OEM, color-coded utilities, quick-connect glycol, and pre-wired PLC. Onsite: anchor skid, connect 3‑phase and glycol, steam line, water/drain; execute hot water, CIP, and water brew.
• Results: Mechanical/electrical hookup in 5.2 hours; first wort next morning. Gravity and lauter flow met targets; no leaks on glycol or steam. Staff trained in a half-day session.

Case Study 2: Pilot-to-Production Scaling of Dry-Hopped Lager (2024)

• Background: A regional brewery struggled to translate pilot hop aroma to 30 hL runs.
• Solution: Matched whirlpool temperature profile and residence time across scales; adopted CO2-purged dry hop tee and identical contact time per hL; monitored DO pre/post hop.
• Results: Sensory panel alignment improved; package DO median dropped from 120 ppb to 65 ppb; production recipe hit pilot IBU within ±2 IBU, reducing rework.

Sources: BA Quality resources, MBAA case notes on scale-up, OEM application guides on skid commissioning and oxygen control. Results depend on site conditions and SOP adherence.

Expert Opinions

• John Mallett, Author of “Malt”; Former VP Operations, Bell’s Brewery
• Viewpoint: “Specify fundamentals—jacket zoning, pump turndown, and clean welds—before adding bells and whistles. Pilot data only scales if the hardware is sound.”
• Mary Pellettieri, Quality Consultant; Author, “Quality Management for Breweries”
• Viewpoint: “Closed transfers and validated CIP on your 2 hL pilot protect sensory data integrity—otherwise scale-up is guesswork.”
• Dr. Tom Shellhammer, Professor of Fermentation Science, Oregon State University
• Viewpoint: “Match thermal histories—whirlpool temperature and time—when scaling hop expression from pilot to production.”

Practical Tools and Resources

• Brewers Association: Quality, safety, sustainability benchmarks: https://www.brewersassociation.org/
• MBAA Technical Quarterly: pilot design, CIP validation, scale-up: https://www.mbaa.com/
• ASME/PED references for pressure-rated vessels: ASME (https://www.asme.org/); EU PED overview (https://single-market-economy.ec.europa.eu/)
• Draft and DO instrumentation: Anton Paar (https://www.anton-paar.com/); Zahm & Nagel (https://zahmnagel.com/)
• Recipe/process software for pilot-to-production scaling: Brewfather (https://brewfather.app/), BeerSmith (https://beersmith.com/)
• Used/new equipment marketplaces: ProBrewer Classifieds (https://www.probrewer.com/), BrewBids (https://www.brewbids.com/)
• Utility calculators: BA Sustainability Tools; local utility rebate programs for VFDs/efficient chillers

Last updated: 2025-09-04
Changelog: Added 5 FAQs specific to 2 hL pilot system design, utilities, controls, and CIP; introduced 2025 benchmarks table for pilot performance; provided two recent commissioning and scale-up case studies; included expert viewpoints; linked practical tools/resources.
Next review date & triggers: 2026-03-01 or earlier if BA/MBAA release new pilot scale benchmarks, local codes impact utility/pressure specs, or OEMs introduce significant skid design updates.
